Hydraulic Scissor Lifts

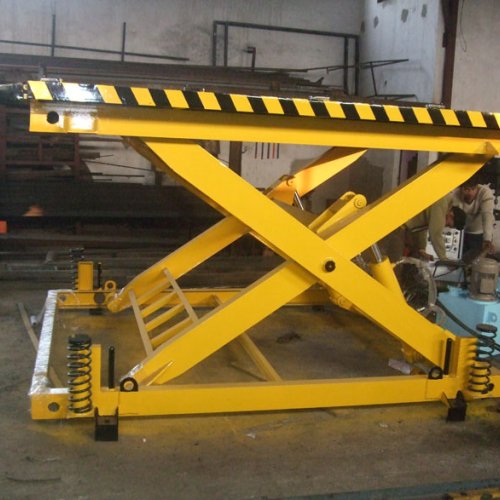

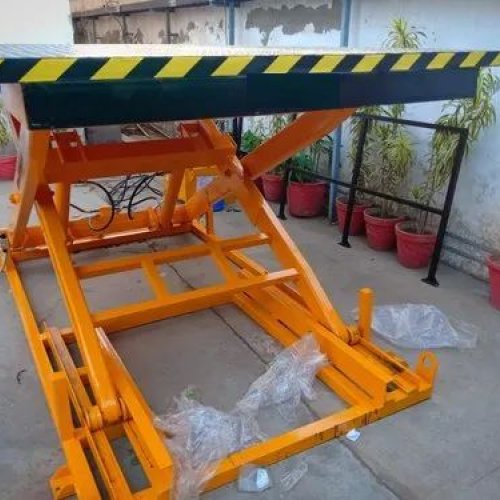

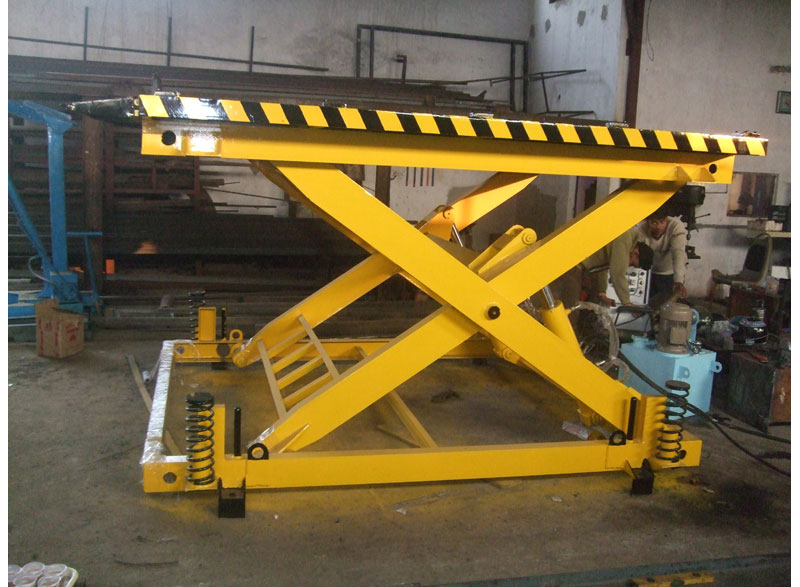

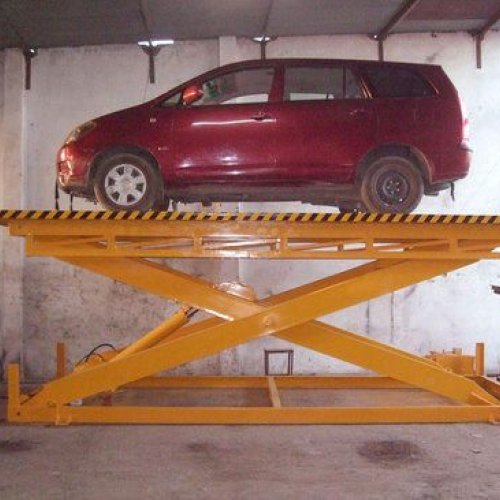

We are a leading Manufacturer, Exporter, and Supplier of the ESSEM 1-2 Ton Hydraulic Scissor Lift, proudly made in India. This Hydraulic Scissor Lift offers high stability with a lifting capacity of 1-2 tons and an operating height of 0-10 feet. The yellow packaging ensures safe delivery. With a size of 2500 x 1200 mm, this lift is designed for efficiency and durability. Featuring a scissor lift mechanism, it guarantees smooth and reliable operation. The product comes with a warranty of 12 months, making it a reliable choice for various industrial applications.

Construction of Hydraulic Lifting Table:

• Welded platform with plain or chequered steel plate.
• Scissors device in heavy section flat steel plate for all models up to 300 Kg. and in tubular sections for the tables above 300 Kg. capacity.
• Single acting cylinder/Double acting cylinder with chrome steel rod and an end of stroke mechanical stop.
• Available in Hydro electrical power unit/ Hand Pump Unit placed inside or outside the lifting table.
• Electric control chest placed outside, feeding voltage 12 VDC/24 VDC/1phased 230 or 3phased 400 Volts 50 Hz, connected to the lifting table
• An "up-down" and "emergency stop" hand push-button control box connected to the electric control chest .



Security:

• Double hydraulic safety valve incorporated in the cylinder and a pilot-operated Check valve at this cylinder base for maintenance and locking up of the platform in position in the event of electric voltage failure or hose breaking.
• Mechanical end of stroke stop in each cylinder.
• Pressure limit valve set in the factory, to prohibit a load higher than 1,1 time the lifting table rated capacity.
• Electrical end of stroke switch on high position ; it ensures the automatic stop of the lifting platform at its maximum stroke.
• Safety frame under the platform perimeter to stop the lowering in case of obstacles.
• Safety legs keep the lifting table at a settled level for maintenance.
• Before forwarding, each lifting table is checked and undergoes the regulation tests.



Main options :

• Fix, removable or portable standardize safety handrails.
• Retractable plinth and stop (drop proof security for the lifting trucks).
• Reinforced platform for travelling overload in low position.

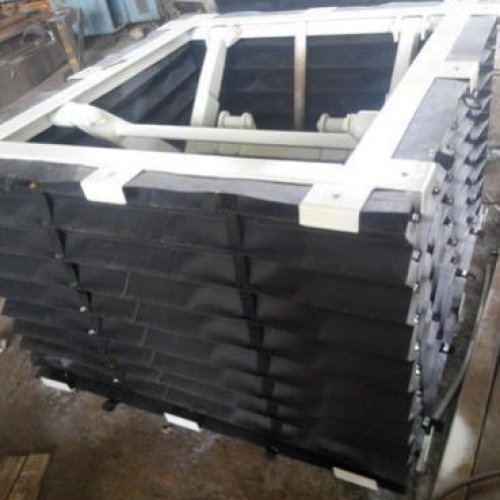

• For side protection of the scissors and to forbid access under the lifting plate: safety removable safety skirts with bellows or steel net, curtains fabric or metal on spring winder.
• Manually or motorized swivelling, tilting, telescopic or sliding platform.
• Special treatment for aggressive surroundings (sanding and suitable painting, plating, hot dip galvanization).
• Specific electric components : explosion-proof, tropicalized, programmable automaton, etc.



Special models of lifting tables and equipment on request:

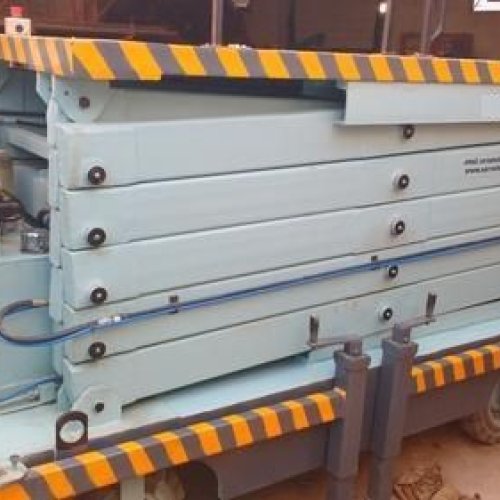

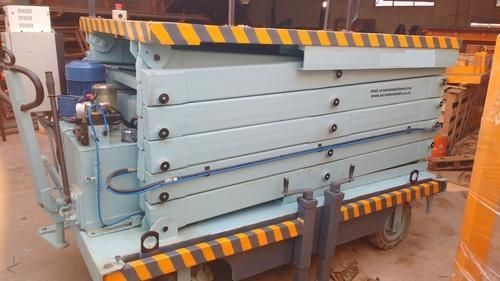

• High Rise Lifting Tables being manufactured in many many sizes shapes and designs with rotary - roller-plane top-starting from 100 kgs upto 500 kgs with wheels hydraulic hand pump or power pack operated - minimum height 100 mm to maximum height upto 10000 mm.
• Small Size Lifting Table being manufactured in many many sizes shapes and designs with rotary - roller-plane top-starting from 100 kgs upto 5000 kgs with or without wheels hydraulic hand pump or power pack operated - minimum height 100 mm to maximum height upto 3000 mm.

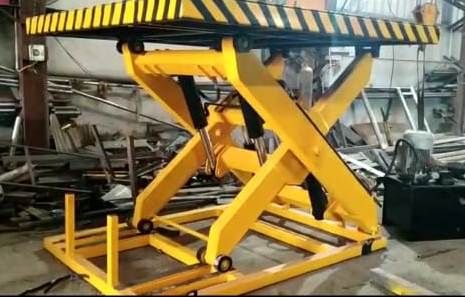

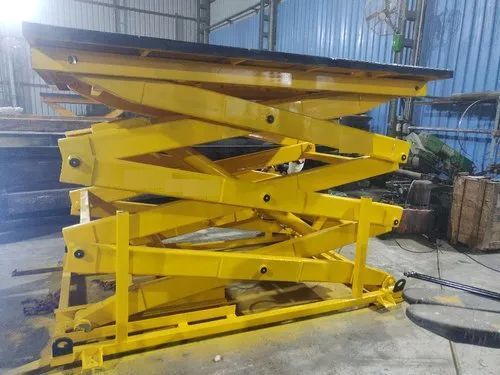

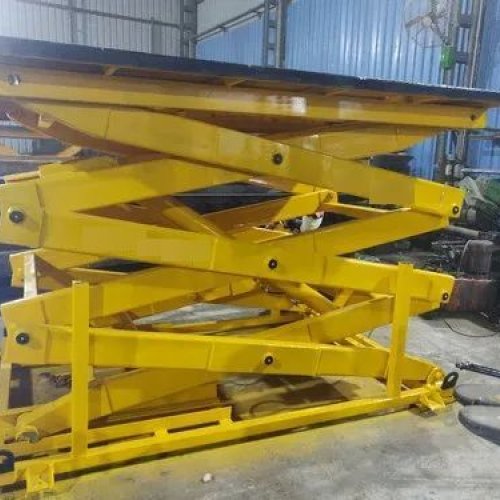

We are a leading Manufacturer, Exporter, and Supplier of Fixed Scissor Platform Lifts, proudly made in India. Our industrial-grade lift has a capacity of up to 1 ton, constructed with high-quality Mild Steel. With a stationary running mode and fixed drive type, our scissor lifts can handle loads of 200-250 kg. Featuring a working height of 1600 mm and a speed range of 50 mm per second, our reliable and efficient lift is perfect for various industrial applications. Trust our Indian-made Fixed Scissor Platform Lifts for superior performance and durability.

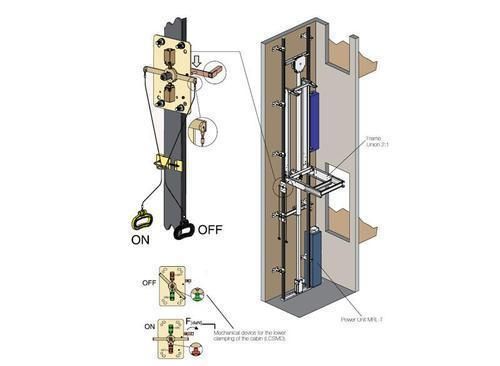

Salient Features

• Holed-less and holed configurations
• Works best even without overhead machine room
• Suitable for shafts having narrow dimension, constrained space

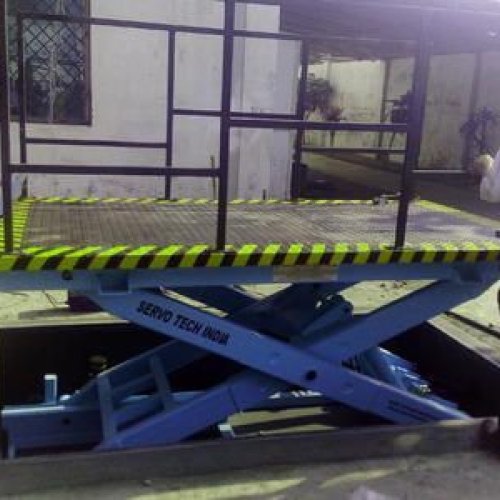

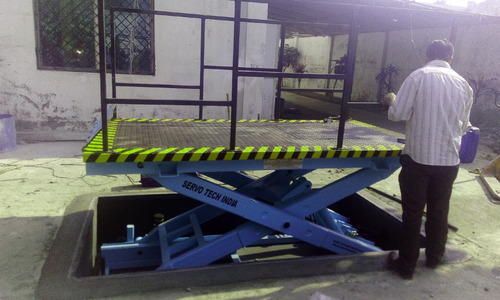

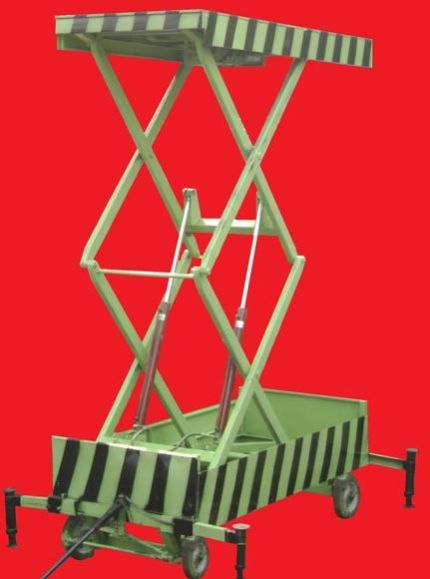

We are offering hydraulic scissor lift.hydraulic scissor lift platfor upto 5 tons capacity and customised size upto 10 mtrs x 3 mtrs.

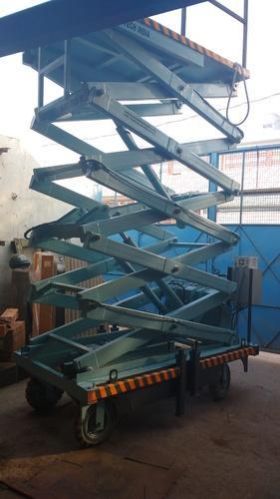

We are ESSEM, a leading Manufacturer, Exporter, and Supplier of Mobile Scissor Lifts made from high-quality Mild Steel in India. Our Mobile Scissor Lift has a capacity of 0.3-0.5 Ton, ideal for industrial applications. With a working height of 30 feet and a manual lift drive, it offers efficient and safe operation. The blue packaging and moving running mode make it convenient to use. The platform area of 2500 x 1200 mm provides ample space for work. Trust ESSEM for reliable and durable Mobile Scissor Lifts for your industrial needs.

We are a leading Manufacturer, Exporter, and Supplier of the ESSEM Movable Scissor Lift, proudly made in India. This hydraulic lift features a 0.5-1 Ton capacity, 15 feet working height, and 100 Kg rated loading capacity. The yellow packaging adds a vibrant touch to this new scissor lift, designed for moving applications. With a hydraulic lift drive and moving running mode, this ESSEM lift ensures efficient and reliable performance. Upgrade your operations with this high-quality scissor lift that combines durability and functionality.
